How to Change Your Suspension Rods or Damper Rods For Your Samsung Washing Machine

How to Change Your Suspension Rods or Damper Rods For Your Samsung Washing Machine







Here's a step-by-step guide on how to change the suspension rods (also called damper rods) in your Samsung washing machine. Suspension rods are essential for stabilizing the drum and minimizing vibration, which is particularly important if you notice excessive shaking or unbalanced loads during spin cycles.



Why Change Suspension Rods?

Over time, the suspension rods can wear out, causing your washing machine to shake excessively or make loud noises. If you’re experiencing any of these issues, replacing the suspension rods can help improve performance and extend the life of your machine.

Tools and Materials Needed

  • Replacement suspension rods (consult your model’s manual for the correct part number)
  • Screwdriver (Phillips and/or flathead)
  • Trim Pick or Butterknife
  • Towel or rag
  • Work gloves (Opt.)

Step 1: Safety First

  1. Unplug the Washing Machine – Before starting, disconnect the power to prevent any risk of electric shock.
  2. Turn Off Water Supply – Shut off the water supply and detach the hoses to ensure no water enters the machine while you’re working.
  3. Wear Protective Gear – Wear gloves to protect your hands while handling metal parts.

Step 2: Access the Interior

  1. Move the Washer – Slide the washing machine away from the wall to access the back panel.

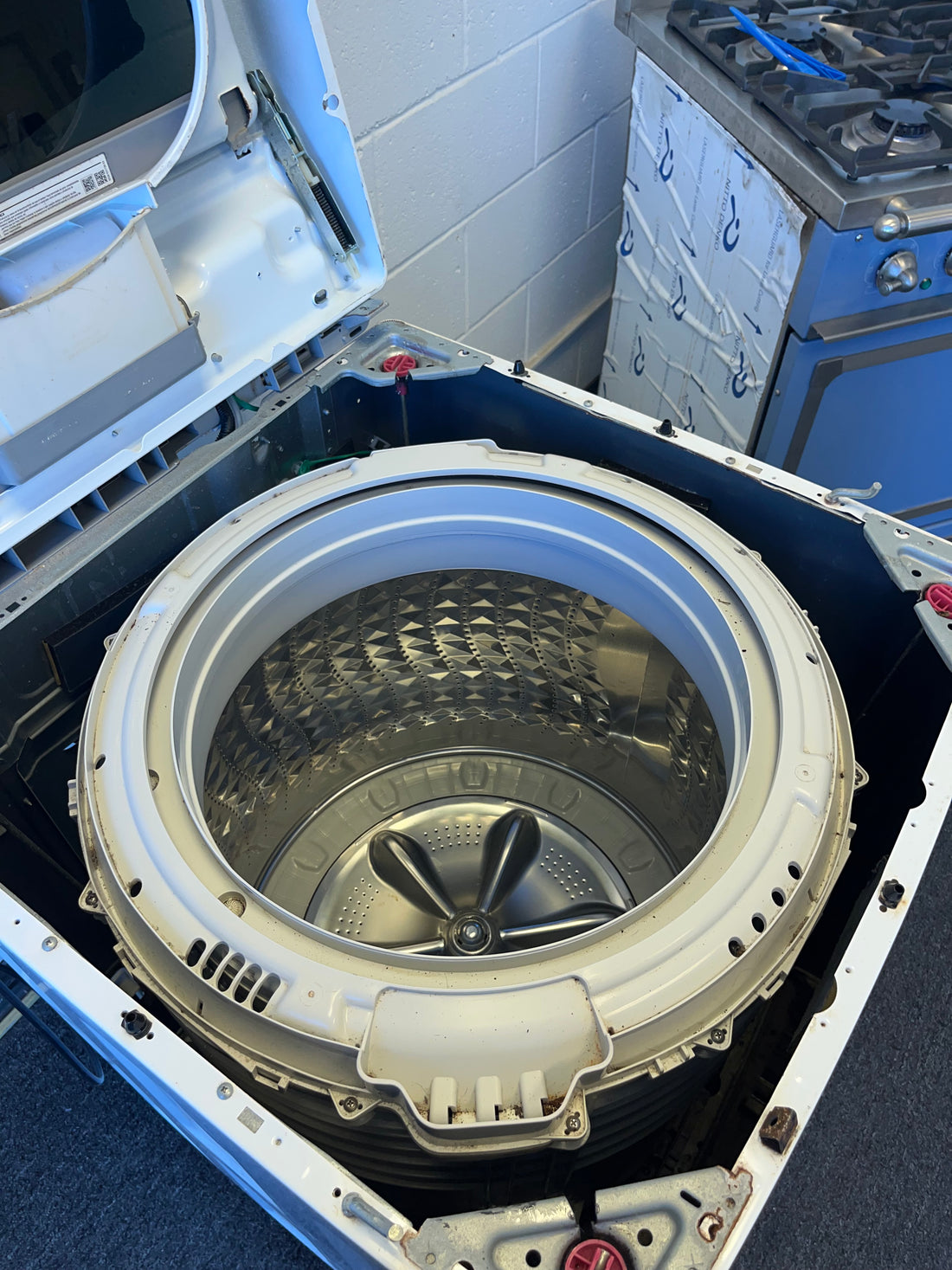

  2. Remove the Top Panel – Using your screwdriver, remove the screws that secure the top panel. Carefully lift and set it aside.
  3. Locate the Suspension Rods – Suspension rods are typically positioned at each corner of the drum assembly. They are long, thin rods that connect to the drum and stabilize its movement.

Step 3: Remove the Old Suspension Rods

  1. Support the Drum – Place a towel or rag underneath the drum to support it and prevent it from falling once the rods are removed.
  2. Detach the Rods – One by one, gently detach each suspension rod from the drum by releasing the clips or bolts holding it in place. Some models may require you to push the rod out of its position using a screwdriver or a bit of force.
  3. Remove the Rods – Once detached, carefully pull each suspension rod out of the washer. Be careful as they may be greasy or have some wear and tear.

Step 4: Install the New Suspension Rods

  1. Insert the New Rods – Take your new suspension rods and insert them into the mounting holes where the old rods were located.
  2. Secure the Rods – Attach each new suspension rod using the clips or bolts. Ensure each rod is securely in place, as this will help with drum stability during washing cycles.
  3. Balance Check – After all rods are installed, ensure the drum is balanced and has a slight bounce when pressed down. If it feels too loose or unsteady, recheck the installation.

Step 5: Reassemble and Test

  1. Reattach the Top Panel – Once the rods are securely in place, reattach the top panel by screwing it back on.
  2. Reconnect Water Supply and Power – Reattach the hoses and turn the water supply back on, then plug the washer back in.
  3. Test the Machine – Run a test cycle without any laundry. Observe for any unusual vibrations or noise, which could indicate an issue with installation.

Additional Tips

  • Check Leveling – After replacing the suspension rods, ensure that your washing machine is level. Adjust the feet as needed to stabilize the washer.
  • Clean Inside – While you have the machine open, consider cleaning any accessible areas, especially if lint or detergent buildup is present.

By following these steps, you can replace your Samsung washing machine’s suspension rods, helping it run more smoothly and reducing vibrations. If the problem persists, consider reaching out to a professional technician.
